1.2cm Project
A while ago I did not know that I was going to own a 24GHz station. Opportunities sometimes just happens. From my QTH, is 24GHz probably a band for portable use. I’m not really a fan of portably testing, but I might need to reconsider.

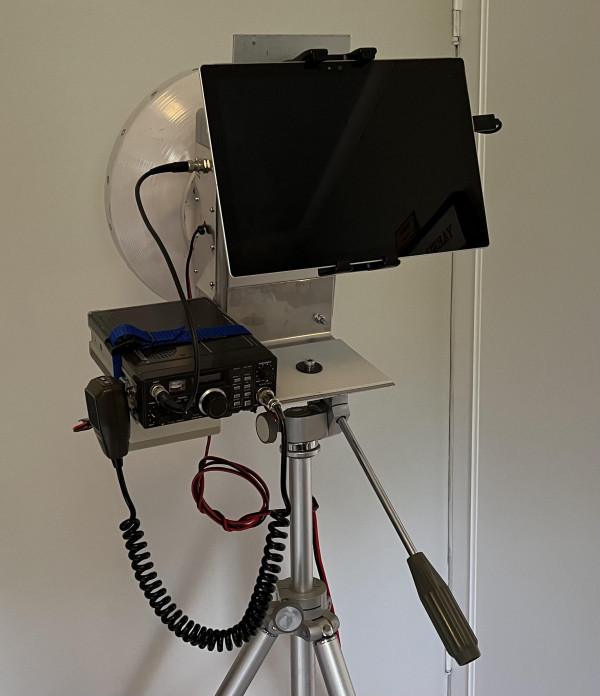

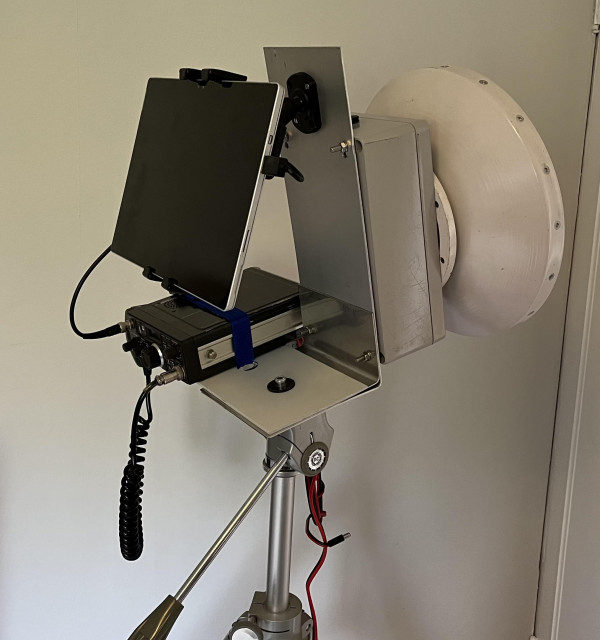

The station consists of:
FT-780R IF
33cm parabola (35-37dBi)
KU-Band 11880MHz LO
MKU-24GA Transverter
MKU-243C 20mW PA
MKU-245 PAC2 1.2W PA
MKU-243 LNA
I have also mounted a PC tablet where my waterfall program is supposed to be running. Everything is not 100% done. The waterfall should be a nice addon to the old FT-780R. Of course, can my logging program also run on the tablet.
Using my waterfall DSP filtering is added to the old IF, different filters can be selected etc.
Example picture of the waterfall program. Why Waterfall | SM6WHY
I will also use the Open CW keyer with the IF. I made a small training program for the keyer.
