MS710 Spectrum Analyzer Control Software
A modern Windows GUI for controlling the Anritsu MS710 series spectrum analyzer via GPIB.
Supports both real hardware and simulation mode – ideal for both measurement and development work. Note, this is a beta version only.
Key Features:
-
Real-time sweep and graph plotting
-
Peak and marker readouts
-
Selection 2 GHz and 23 GHz bands
-
Manual or auto GPIB command control
-
Span and bandwidth configuration
-
Averaging across multiple sweeps
-
Export graph to PNG
-
Debug log with export option
Requirements:
-
Windows 10 or later
-
.NET Framework 4.7.2+
-
GPIB interface (NI/Agilent)
-
MS710A/B/C/D/E/F spectrum analyzer
Bonus Features:
-
Simulation mode without hardware, simulates a 5760BPF.
-
Preselector peak command
-
Auto settings (AR, AV, AS, AI)
-
Adjustable resolution/video bandwidth (RBW/VBW)
-
Visual sweep markers and peak detection

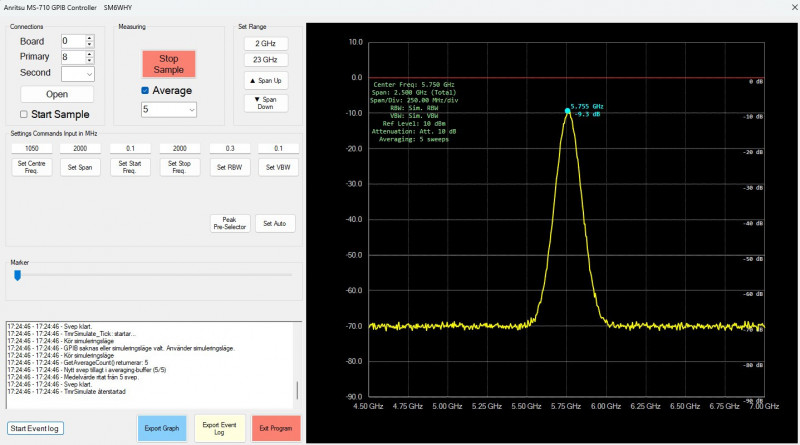

Screenshot:
Documentation:
A full user manual describing installation, usage, advanced features, and troubleshooting.
anritsu-ms710-gpib-controller.pdf
And here is a beta version yet not HW tested.
If you like the program and feel to donate use the Donate button.
